Standard PCBN Insert

Standard PCBN Insert Standard PCBN Insert Standard PCBN Insert Standard PCBN Insert < >: Introduction

Description: PCBN Inserts
Processing Material: Hardened Steel, High Strength Alloy, Powder Metallurgy, Gray Cast Iron
Machined Parts: Bearings, Gears, Gear Shaft, High Hardness Component, Powder Metallurgy Valve Seat, Valve Seat Ring, Engine Cylinder Bore, Powder Metallurgy Parts, Carbide / Cemented Carbide Parts
Whatsapp: +8613271562251
Email: halnn@halnn-group.com; Get Quote

Catalog Download

: LEADING POSITION We're in the leading position, is the well-known brand in superhard materials and application in China.

: SITUABLE SOLUTION Provide tailored service in superhard material and tools field, devote to offer comprehensive solution to global customers.

: MASS STOCK There is Large stock for standard tools, noted for our quality any service in Chinese high-end market.

: BEST COOPERATION We had prepared the distributorship and service center in the global key markets, is opening to welcome any cooperation for discussion.

Parameters

1. PCBN Inserts ISO Models

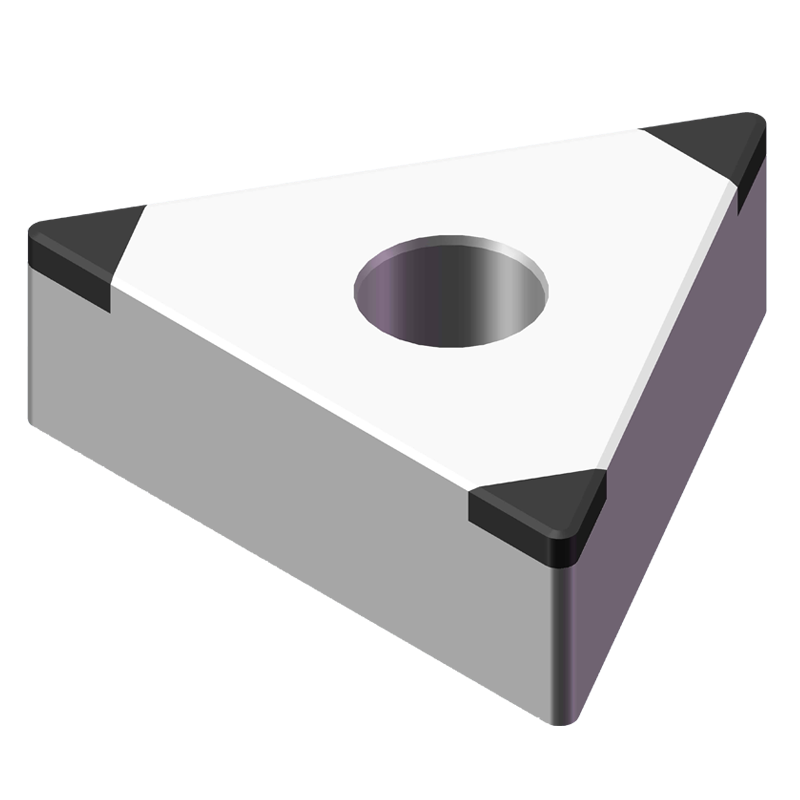

Brazed PCBN insert ISO Models

CNGA-4S	DNGA-4S	TNGA-6S	WNGA-6S	VNGA-4S

PCBN Inserts ISO Models

CNGA-2S	DNGA-2S	TNGA-3S	WNGA-3S	TCGW-3S

CNGA-4S	DNGA-4S	TNGA-6S	WNGA-6S	TPGW-3S

VNGA-2S	SNGA-2S	CCGW-2S	SNGA	VCGW-2S

VNGA-4S	DCGW-1S	DCGW-2S	SPGN-1S	TPGN-1S

Coating PCBN	Coating PCBN	RNGN	CNGA	APKT

2. Halnn PCBN Grade

Halnn CBN Grade	Suited materials	Machining Condition	Typical application	Image
BN-H11	Hardened Steel	Semi-Finishing, Finishing	Bearings, Gears, Gear Shaft, Hardened Mold
BN-H20	Hardened steel,other materials	Semi-Finishing, Finishing	Hardened Steel Gears, Mold,ect
BN-K20	Gray Cast Iron	Semi-Finishing, Finishing	Brake Disc, Cast Iron Engine,Gearbox
BNK30	Gray cast iron,Iron based alloy	Semi-Finishing,Finishing	Brake Disc, Brake Drum, Cast Iron Engine, Gearbox
BN-K50	Powder Metallurgy	Finishing	Powder Metalurgy Valve seat

CBN Grade	Suited Machining Materials	Machining Type	Typical Application Industry	Image
BN-H05	Hardened Steel	Finishing	Gears,Gear Shaft, Bearings
BN-H10	Hardened Steel, High Strength Alloy	Finishing	Bearings, Gears, Gear Shaft, High Hardness Component
BN-H21	Hardened Steel	Finishing	Bearings, Gears, Gear Shaft,Mold,ect.
BN-K10	Gray Cast Iron, Powder Metallurgical	Finishing	Valve Seat Ring, Engine Cylinder Bore, Powder Metallurgy Parts
BN-H05 C25	Hardened Steel	Finishing	Bearings, Gears, Gear Shaft, Mold,ect
BN-H10 C25	Hardened Steel	Finishing	Bearings, Gears, Gear Shaft, High Hardness Components
BN-H21 C25	Hardened Steel	Finishing	Bearings, Gears, Gear Shaft, Mold,ect

3. CBN Characteristics

CBN Grade	Binder	CBN Content（%）	Granularity（μm）	Hardness（HV）
BN-H11	TIN	70	2-4	2800-3000
BN-H20	TIC	80	2-4	3100-3300
BN-K50	Co	85	≤2	3300-3500
BN-K20	TIC	95	2-4	3400-3600
BNK30	Si，TIC	97	2-4	3400-3600

CBN Grade	Binder	CBN Content（%）	Granularity（μm）	Hardness（HV）
BN-H05	TIN	45	≤1	2700-2800
BN-H10	TIN	50	≤1	2700-2800
BN-H21	AL，TINC	60	1-2	2600-2800
BN-K10	Ti，Co	95	≤2	3300-3500
