Description: PCD tools for wheel hub
Applied Materials: Aluminum alloy wheel hub
Whether Coating: No
Whatsapp: +8613271562251
Email: halnn@halnn-group.com
1. PCD turning inserts
| Model | ||||
| VCGT160404 | VCGT160408 | VCGT130412 | VCGT220516 | VCGT220530 |
| VCGW160404 | VCGW160408 | VCGW130412 | VCGW220516 | VCGW220530 |
| Note: Carbide Insert tool holder can be used. | ||||
2. PCD Inserts for radius angle 2.5 & 3.0
| Radius Angle | Model | L | W | H | α |
| R2.5 | HLT01-R2.5 | 150 | 18 | 18 | 20° | |
| R2.5 | HLT02-R2.5 | 175 | 25 | 25 | 20° |
| Radius Angle | Model | L | W | H | α |
| R3.0 | HLT01-R2.5 | 150 | 18 | 18 | 20° | |
| R3.0 | HLT02-R2.5 | 175 | 25 | 25 | 20° |
3. PCD Inserts for radius angle 3.0 & 4.0

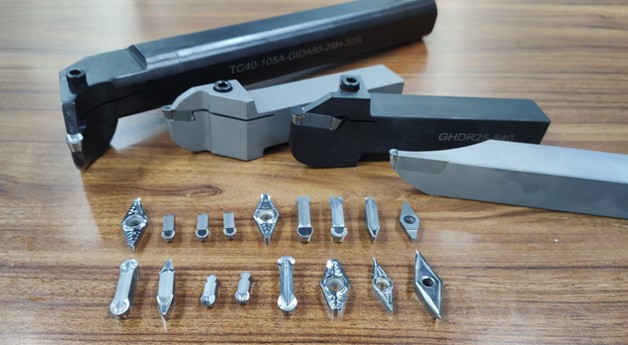

Typically, the pcd insert with R4.0 will use Iscar base, and then brazed pcd tips to extand the tool life and improve the machined surface. The following is the image and the tool holder:
Note: we can make it as customers' requiements, cuxtomers need to offer the base model.
The application of PCD Cutting Tools
(1) Suitable machining Site: Cylindrical, rims, spokes, groove bottom and so on
(2) Suitable machining wheel hub:Gravity casting wheel, low pressure precision casting wheel,extrusion casting Create wheels, forged wheels and so on.
Mode:RNMN RCMX-V RCMX-Y PCD Type:BN-K1,BN-S20,CDW010 Application:Heavy Machining
Mode:CBN Inserts Type:BN-S300,BN-S30 Application:Brake Disc/Drum
Mode:Drilling, Boring, Reaming Type:Gun Drills, Solid Carbide Drill Application:Hole Machining
Mode:Turning, Milling, Drilling, Boring Type:Crown Drill, PCD Inserts Application:Wind Energy
